Home/ Products / DC6060A High Precision CNC Milling Machine

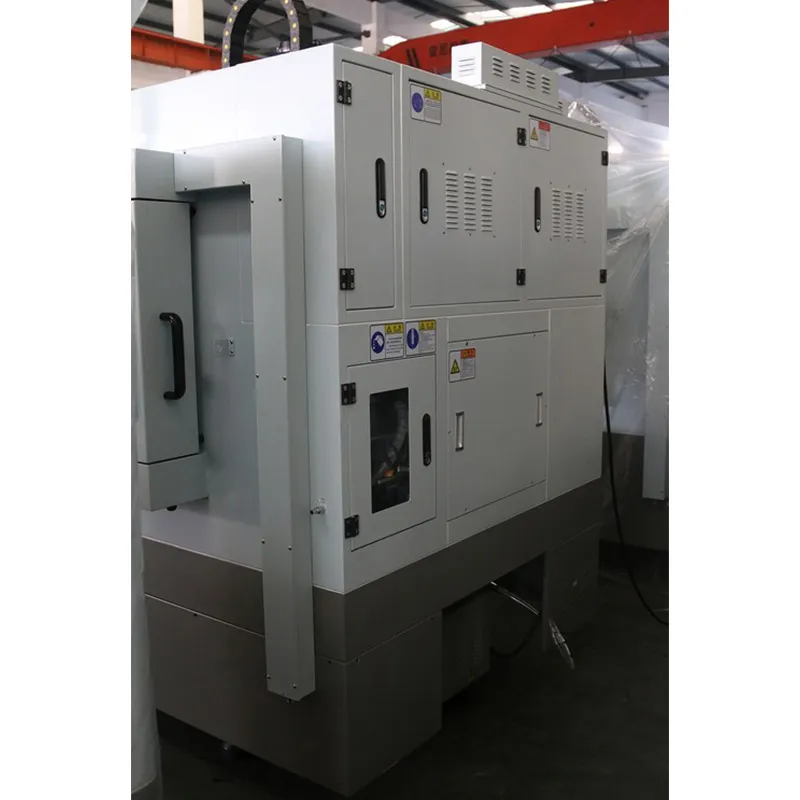

DC6060A High Precision CNC Milling Machine

Name: DC6060A High Precision CNC Milling Machine
Rating: 5.0 (50 reviews)

The DC6060A represents a compact and highly precise double-column vertical CNC milling machine, renowned for its exceptional rigidity and a wide range of optional features. This machine is uniquely suited for working with aluminum and steel molds, ensuring that your mold-making processes are not only more precise but also significantly more efficient than before.

Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China

 

https://shmuker.oss-accelerate.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820153956/lQLPJxEb-WmqFMPNBU7NA4iwVikvY6CgmK8GrUkZyfl5AA_904_1358.png

https://shmuker.oss-accelerate.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807112020/cnc-milling-machine-with-bt30-spindle-dc6060a-2.jpg

Product Parameters

Accuracy

positioning accuracy:	0.01 mm
Repeatability:	0.005 mm

Workbench

working desk size:	610*600mm
T-slot dimensions:	5T-16-125 mm
Maximum load:	300 kg

Processing range

X/Y/Z axis travel:	600/600/260 mm
Gantry width:	700 mm
Beam to workbench:	500 mm
Spindle nose to worktable:	130-390 mm
Door opening width:	650 mm

Feed

Maximum feed speed G00:	15 m/min
Maximum processing speed G01:	10 m/min
X/Y/Z axis motor power:	850W/850W/850W

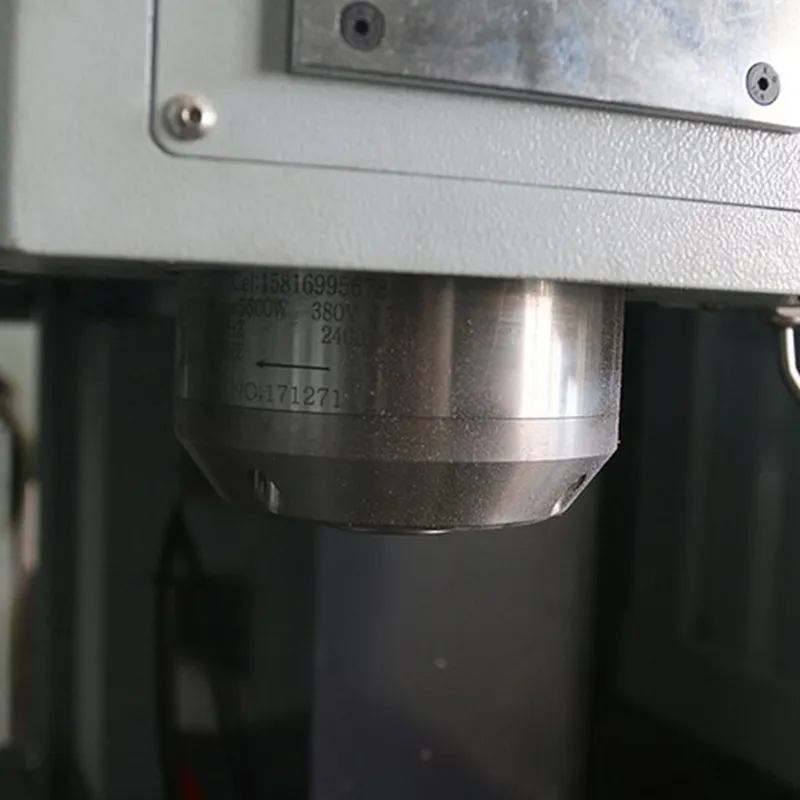

Spindle

Spindle motor power:	5.5 kW
Maximum spindle speed:	24000 rpm
Tool holder:	ER25(φ3.17-φ16)
Spindle diameter:	125 mm

Common

Power supply and total capacity:	3P/380V/50Hz/12KVA
Machine weight:	4200 kg
aspect:	220018002200mm

The main components

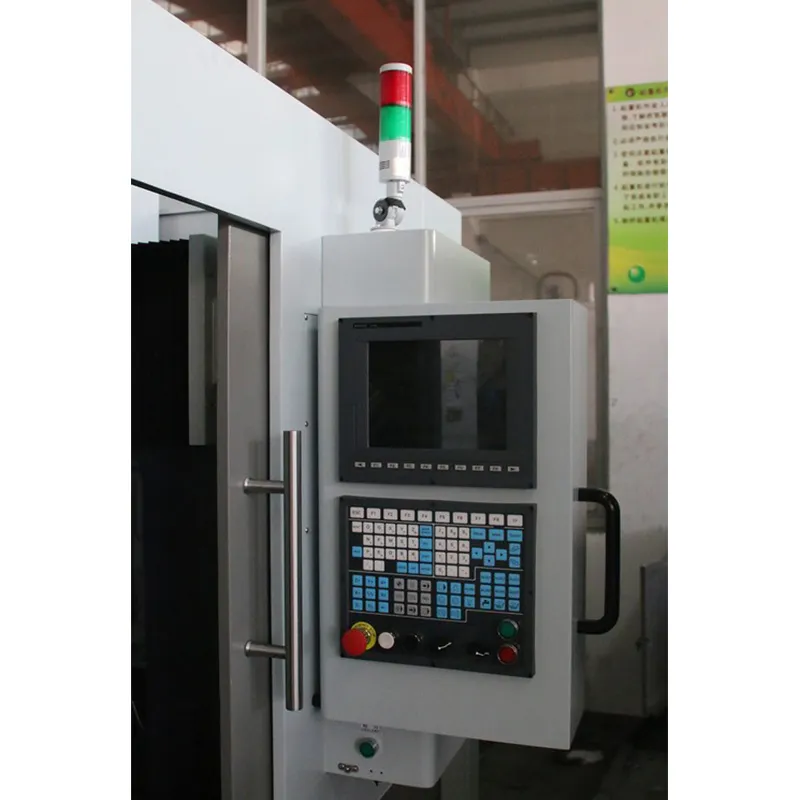

Controller:	Syntec 21MA/Taiwan
AC servo motor (driver):	Yaskawa/Japan
Spindle inverter:	Innovation/China
Linear Guides:	30 Hiwin, PMI/Taiwan
Ball Screw:	2810 Hiwin, PMI/Taiwan
Electronic handwheel:	EHDW-BA5S-1 Future/Taiwan
Lubrication system:	YET-A2P2 ISHAN/Taiwan
Oil Cooler:	Parsonshal/China
air conditioner:	Opt.Parsonthor/China
Pneumatic system:	AirTac/Taiwan
Chip conveyor:	—
Water tank capacity:	137 liters
Water pump power:	400W

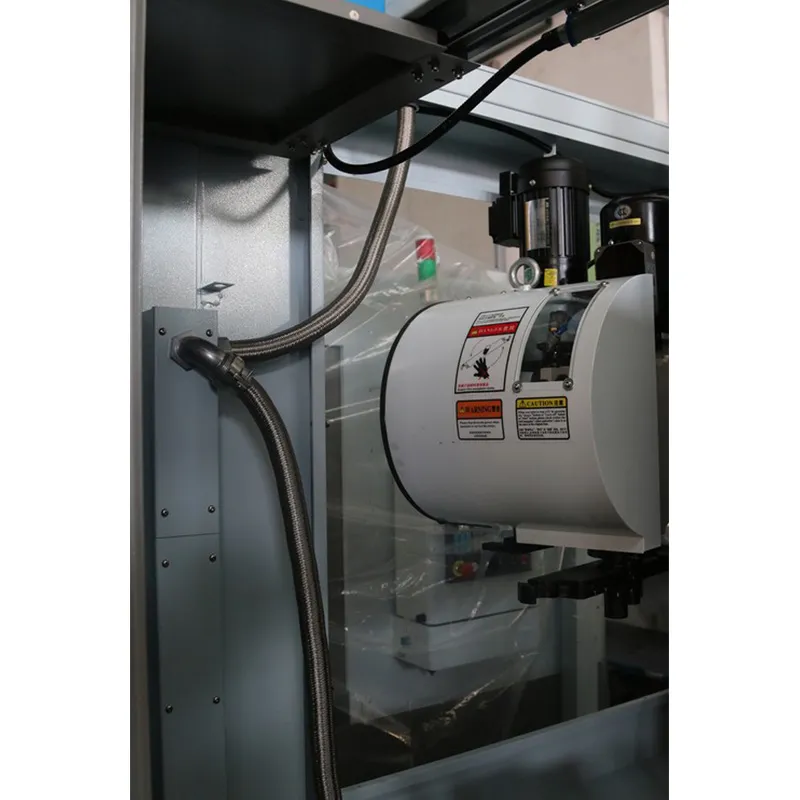

Tool magazine (optional)

ATC Type:	Inline type/arm type
Air traffic control capabilities:	6 pieces/20 pieces

Product Details

Product Introduction

The DC6060A CNC milling machine is equipped with a BT30 spindle. It is a small double-column vertical milling machine. As a small CNC milling machine, in addition to its unquestionable precision, its rigidity is also quite outstanding.

Advantages and features

1. High precision and high rigidity
2. Optional 4/5-axis rotary table
3. Optional disc-type tool changer
4. Very suitable for high-precision aluminum mold manufacturing
5. Suitable for high-precision steel molds
6. Small moving beam vertical machining center
7. Use C-grade HIWIN or PMI/Taiwan ball screw
8.P-grade HIWIN or PMI/Taiwan linear guide

Application Scenario

1. Shoe mold making
2. Plastic mold making
3. Die casting mold production
4. High-precision aluminum mold manufacturing
5. High-precision steel mold production

Corporate Information

Ningbo Kaibo CNC Machinery Co., Ltd.

Certificado de Registro de Logros Científicos y Tecnológicos - Investigación de Tecnología Clave e Industrialización de Centros de Mecanizado de Compuestos de Perforación y Fresado CNC de Precisión, Eficiencia y Velocidad

Certificado de Registro de Logros Científicos y Tecnológicos - Aplicación del Software del Sistema de Programación Automática Conversacional Gráfica Basado en el Sistema de Control YSNTEC en Máquina de Grabado de Alto Rendimiento

Certificado de registro de logros científicos y tecnológicos: investigación y desarrollo de tecnologías clave para el sistema CNC de máquina fresadora y grabadora de precisión de alta velocidad con enlace de cinco ejes

Certificado de certificación de fabricación de Zhejiang 2024.11.27

100%

On-time delivery rate

Less than 3 hours

Response time

52000

Construction area

Service Guarantee

Service Information

Tel

+86-15805747758

[email protected]

Address

Industry Area of Changjie, Ninghai, Ningbo, Zhejiang, China

Call Now

Advisory Message

Pre-sales advice

Equipment can be customized according to your requirements (machine configuration, color...)

After-sales service

1. After-sales guarantee: We provide one-year free quality assurance service for the products we sell to ensure the stability and reliability of the products.
2. Technical support: The company has 26 sales service offices, equipped with professional technicians, who can answer customer questions online 24/7 and provide remote or on-site technical support.
3. Training service: Provide customers with free operation and maintenance training to ensure that customers can use and maintain the equipment proficiently.
4. Accessories supply: Provide original accessories for a long time to ensure the continuous and normal operation of customers' equipment.
5. Customer Feedback: Respond to customer feedback in a timely manner and continuously improve products and services to meet customer needs to the greatest extent possible.

Specific details

Please contact us

Product Specifications Reference

Spindle type

ER25/5.5kw/24000rpm electric spindle NBT30/5.5kw/24000-30000rpm electric spindle NBT30/7.5kw/24000-30000rpm electric spindle HSK E40/5.5-7.5kw/30000rpm electric spindle More spindles

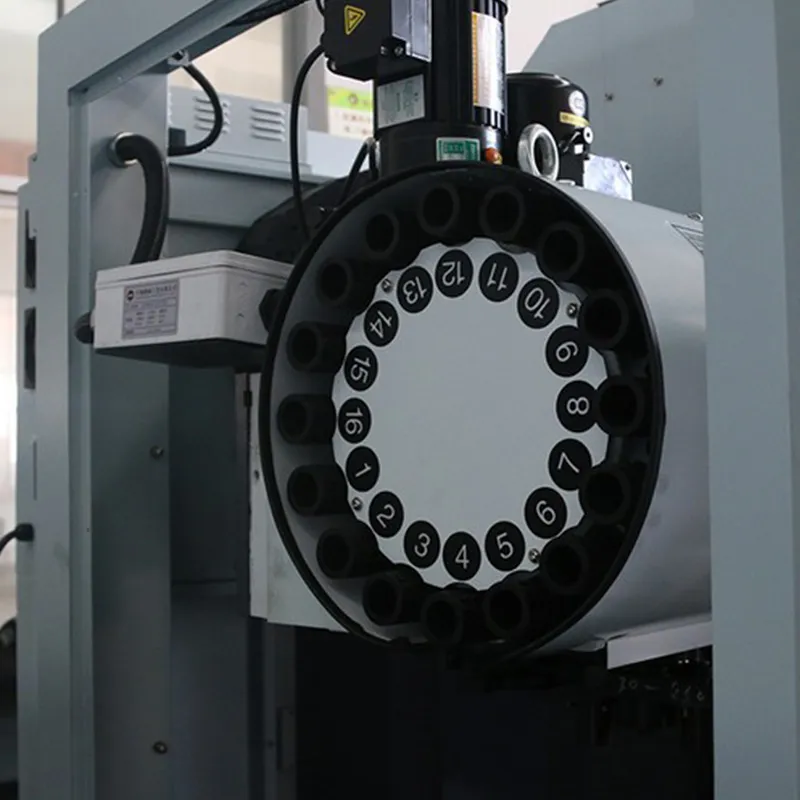

Tool magazine type

Straight tool magazine (6 pieces) Arm type tool magazine (20 pieces) Umbrella tool magazine (10 pieces) Umbrella tool magazine (14 pieces)
