Home/ Products / DC6040A Mini CNC Milling Machine

DC6040A Mini CNC Milling Machine

Name: DC6040A Mini CNC Milling Machine
Rating: 5.0 (50 reviews)

The DC6040A Mini CNC Mill combines high precision, stability and ease of use into a compact device that is perfect for home and small-scale metalworking tasks.

Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China

 

https://shmuker.oss-accelerate.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135341/6产品two-phase-home-use-mini-cnc-milling-machine-for-metal-dc6040a-1.png

https://shmuker.oss-accelerate.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807110939/two-phase-home-use-mini-cnc-milling-machine-for-metal-dc6040a-2.jpg

Product Parameters

Accuracy

positioning accuracy:	0.01 mm
Repeatability:	0.005 mm

Workbench

working desk size:	620*455mm
T-slot dimensions:	4T-12-120 mm
Maximum load:	150 kg

Processing range

X/Y/Z axis travel:	600/400/140 mm
Gantry width:	705 mm
Beam to workbench:	300 mm
Spindle nose to worktable:	140-280 mm
Door opening width:	540 mm

Feed

Maximum feed speed G00:	15 m/min
Maximum processing speed G01:	10 m/min
X/Y/Z axis motor power:	400/400/400 W

Spindle

Spindle motor power:	1.5KW
Maximum spindle speed:	24000 rpm
Tool holder:	ER16(φ3.17-φ8)
Spindle diameter:	85 mm

Common

Power supply and total capacity:	1P/220V/50Hz/5KVA
Machine weight:	2000 kg
aspect:	181015501870mm

The main components

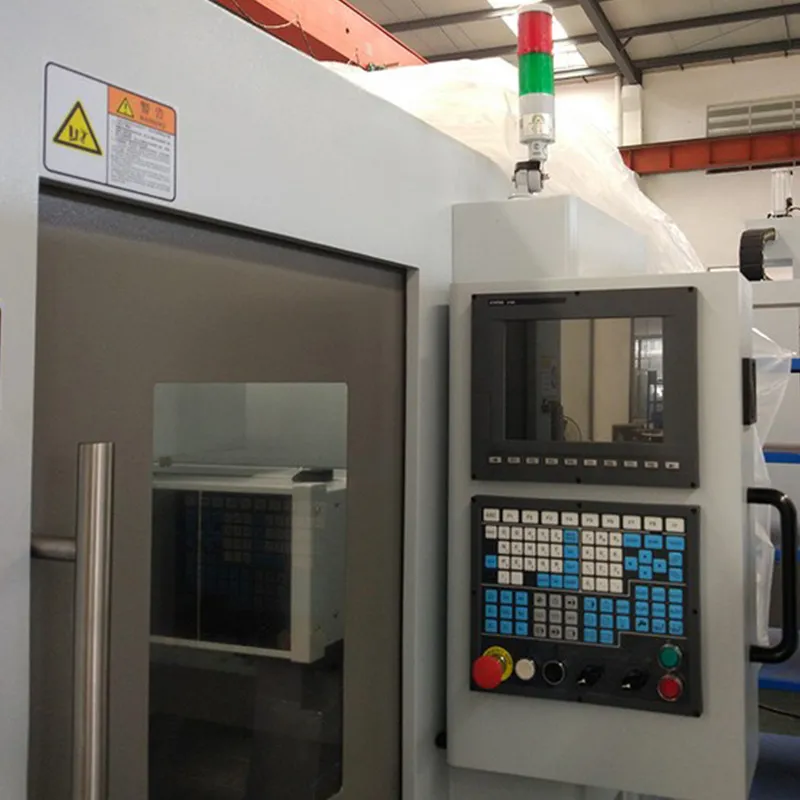

Controller:	Syntec 21MA/Taiwan
AC servo motor (driver):	Yaskawa/Japan
Spindle inverter:	Innovation/China
Linear Guides:	20 Hiwin, PMI/Taiwan
Ball Screw:	2005 Hiwin, PMI/Taiwan
Electronic handwheel:	EHDW-BA5S-1 Future/Taiwan
Lubrication system:	YET-A2P2 ISHAN/Taiwan
Oil Cooler:	Opt.Parsonthor/China
air conditioner:	Opt.Parsonthor/China
Pneumatic system:	AirTac/Taiwan

Product Details

Product Introduction

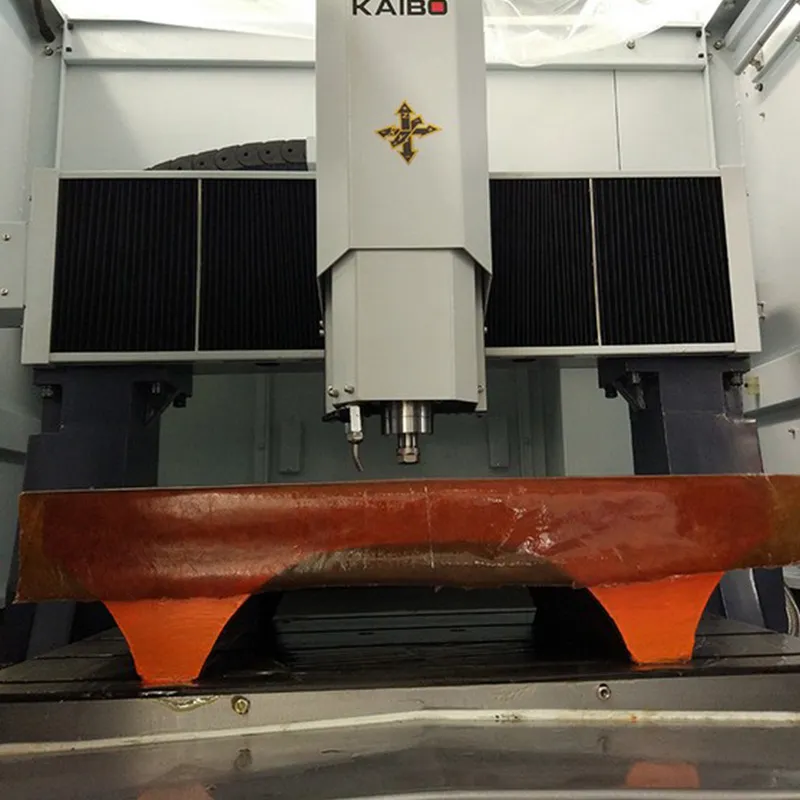

The single-phase household small metal CNC milling machine DC6040A is the smallest model of Kaibo CNC. It is a gantry-type CNC milling machine. It is warmly welcomed by users for its high precision, low noise and strong stability.

Advantages and features

1. Adopt servo motor and precision ball screw, with high precision.
2. Low operating noise.
3. Strong stability.
4. It adopts 1.5KW high-precision frequency conversion spindle, which is easy to use.
5.Artistic and precise processing capabilities.

Application Scenario

1. Plastic mold
2. Shoe Model
3. Auto parts
4. Graphite
5. Roller
6. Hardware

Corporate Information

Ningbo Kaibo CNC Machinery Co., Ltd.

Certificado de Registro de Logros Científicos y Tecnológicos - Investigación de Tecnología Clave e Industrialización de Centros de Mecanizado de Compuestos de Perforación y Fresado CNC de Precisión, Eficiencia y Velocidad

Certificado de Registro de Logros Científicos y Tecnológicos - Aplicación del Software del Sistema de Programación Automática Conversacional Gráfica Basado en el Sistema de Control YSNTEC en Máquina de Grabado de Alto Rendimiento

Certificado de registro de logros científicos y tecnológicos: investigación y desarrollo de tecnologías clave para el sistema CNC de máquina fresadora y grabadora de precisión de alta velocidad con enlace de cinco ejes

Certificado de certificación de fabricación de Zhejiang 2024.11.27

100%

On-time delivery rate

Less than 3 hours

Response time

52000

Construction area

Service Guarantee

Service Information

Tel

+86-15805747758

[email protected]

Address

Industry Area of Changjie, Ninghai, Ningbo, Zhejiang, China

Call Now

Advisory Message

Pre-sales advice

Equipment can be customized according to your requirements (machine configuration, color...)

After-sales service

1. After-sales guarantee: We provide one-year free quality assurance service for the products we sell to ensure the stability and reliability of the products.
2. Technical support: The company has 26 sales service offices, equipped with professional technicians, who can answer customer questions online 24/7 and provide remote or on-site technical support.
3. Training service: Provide customers with free operation and maintenance training to ensure that customers can use and maintain the equipment proficiently.
4. Accessories supply: Provide original accessories for a long time to ensure the continuous and normal operation of customers' equipment.
5. Customer Feedback: Respond to customer feedback in a timely manner and continuously improve products and services to meet customer needs to the greatest extent possible.

Specific details

Please contact us

Product Specifications Reference

Spindle type

ER16/1.5kw/24000rpm electric spindle ER16/1.5-3kw/24000rpm constant power electric spindle ER20/3kw/24000rpm electric spindle ER25/4.5kw/24000rpm electric spindle NBT30/4.5kw/24000rpm electric spindle HSK E25/3kw/40000rpm electric spindle More spindles
